Specifications
The most versatile BIAB/RIMS control panel available for brewing. Â The 360 series 30a single vessel, single element control panel provides multiple opportunities for the home brewer. Â With the touch functionality of our commercial panels, a user friendly interface with some handy conveniences such as automatic start for heating early in the morning. Automatic step mash temp management for more consistent mash results. As well as functionality for fermentation control of 2 fermenters, both heat and cooling logic. Â Pair with our PowerCon pump jumpers for each output for the pump(s) or valves. Available standard with a 4" screen, upgradeable to the pictured 7" screen. Â Additionally, upgradeable to include remote, web access.
The Electric Brewing Supply 360 BIAB (Brew-In-A-Basket)Â controller is designed for controlling 1Â element in a vessel, while also controlling a pump as well as 2 fermenters. The system is capable of dual voltage input based on the power cable used.
Dual voltage input capable. Depending on the power cable used, opt to brew on 120v or 240v at home or on the road.  With 240v, get the full power of your 5500 watt element, while 120v will allow you to use the same element and hardware, but at 1375 watts.
Trust in your system to last for you, while also know that the hardware is industrial standard, making for fast and easy repairs in case something does happen.
Â
Panel Specifications
| PID Controllers |

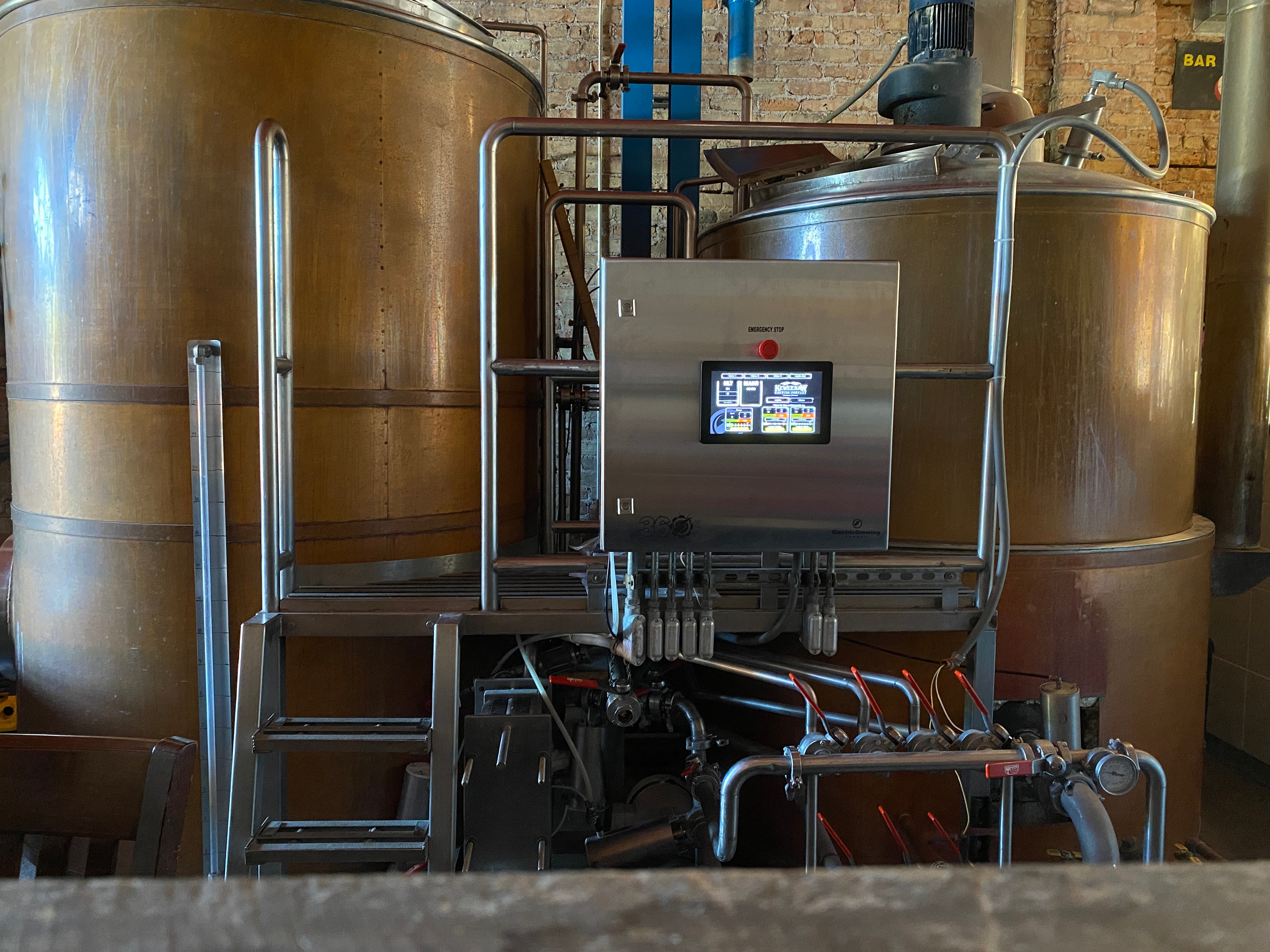

Horner Automations X4 4" Touch Screen Pictured with 7" touch screen |
| Full load amperage: | 25 amps @ 240v, 13.5 amps @ 120v |
| Max Output:Â | (1) 5500w Elements and (1) Brewery Pumps @ 2Â amps |
| Power outlet: | 14-30 Range style, requiring Neutral and Ground |
| Power cord: | 6 foot cord secured to panel by cable grip |
| Power in: |
Cable through grip, 240v with ground and neutral. Panel uses and provides 120v for control and for pumps |
| Panel outputs: |
(1) L6-30 flanged outlets for elements (6) 120v PowerCon Outputs for pumps and fermentation |
| Panel inputs: |
(4) XLR inputs with (1) M12 variant cable for NPT and TC probes |
| Enclosure: |
Stainless Steel Nema 4x Enclosure 12 in (W) x 12 in (H) x 6.5 in (D) 300 mm x 325 mm x 175 mm |
| Included in the box: |
(1) Control Panel (1) Power cord for panel (1) Temp probe cable (X) Temp probe dependent on selection |
| Certifications: | Certified UL and cUL under UL 508a |
| Point of origin: |
 Terminal blocks, relays and power from Germany Enclosure, outlets and inlet, contactors, breakers and SSRs from China Touch controller made in Indiana, USA |
| Warranty: | 1 year parts, 90 days labor |
All panels are assembled by Electric Brewing Supply, in Chassell, Michigan from globally sourced parts.
Touch Controls
Clear and easy
Taking from an extensive background in User experience development, we have created an easy to use, straight forward, responsive touch control solution with great functionality and features.
PRO GRADE
Tech not just for the pros
Our 360 Series software is highly configurable, and powerful. We've spent years developing many features that can be used both in a home setup as well as in a pro setup.
MORE CAPABILITY
Universal Web and Touch control
Don't just control your brewhouse from the control panel in the room, but take control from across your home or facility. With universal control via web, you can take control from any web browser connected to the same network without needing an internet connection.
Take it a step further by adding a VPN and access from anywhere in the world.
POWER RATING
Standard or Double Batch
Brew with 1 vessel at a time or 2. With double batch power, heat your HLT and Boil kettles at the same time; speeding up your day. Prepare the second batch of strike water or clean up more quickly.
See the specifications for power draw for each power rating.
INCLUDED
Probes included
Included in the price is our high quality RTD/PT100 probes. Select between 1/2 NPT threaded probes or 1.5" Tri-Clamp probes.
Easily mounted
Mount your panel quickly using an industry standard 200x200 VESA TV wall mount. No more guess work involved, find your stud, mount the wall bracket and then, your panel.
Proudly made in the USA
All of our control panels are made right here in the USA. With support and technical help provided by the same folks who designed and built the panel for you.
