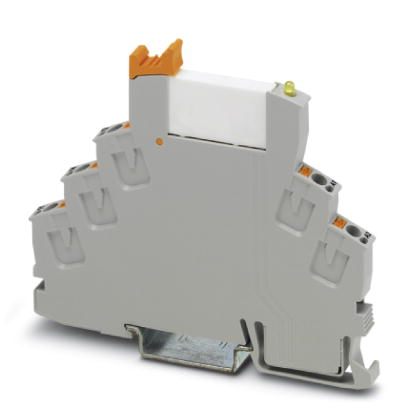

RIF-0-RPT-24DC/21- Pre-assembled relay module with pushin connections
RIF-0-RPT-24DC/21- Pre-assembled relay module with pushin connections

RIF-0-RPT-24DC/21- Pre-assembled relay module with pushin connections

Price
$ 12
Taxes and shipping calculated at checkout

Frequently Bought Together

In stock and ready for shipping

Fast Shipping

Typically ships FedEx 2 day air

Free shipping over $74

Flat rate $9 shipping, free for orders over $74

Description

24vdc Relay module

Pre-assembled

Group together using FBS #-6 jumpers (same used for UT4 terminal blocks)

Coil side

Nominal input voltage UN 24 V DC
Input voltage range in reference to UN see diagram
Typical input current at UN 9 mA
Typical response time 5 ms
Typical release time 8 ms
Coil voltage 24 V DC
Protective circuit Damping diode
Operating voltage display Yellow LED
Power dissipation for nominal condition 0.22 W

Contact side

Contact type 1 PDT
Type of switch contact Single contact
Contact material AgSnO
Maximum switching voltage 250 V AC/DC
Minimum switching voltage 5 V (at 100 mA)
Min. switching current 10 mA (at 12 V)
Maximum inrush current 10 A (4 s)
Limiting continuous current 6 A
Interrupting rating (ohmic load) max. 140 W (at 24 V DC)
20 W (at 48 V DC)
18 W (at 60 V DC)
23 W (at 110 V DC)
40 W (at 220 V DC)
1500 VA (for 250 V AC)
Switching capacity 2 A (24 V (DC13))
0.2 A (at 110 V, DC13)
0.1 A (at 220 V, DC13)
3 A (at 24 V, AC15)
3 A (at 120 V, AC15)
3 A (at 230 V, AC15)

Connection data 1

Connection name Input side
Connection method Push-in connection
Stripping length 8 mm
Conductor cross section solid 0.14 mm² ... 1.5 mm²
Conductor cross section flexible 0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
Conductor cross section AWG 24 ... 16

Connection data 2

Connection name Output side
Connection method Push-in connection
Stripping length 8 mm
Conductor cross section solid 0.14 mm² ... 1.5 mm²
Conductor cross section flexible 0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
Conductor cross section AWG 24 ... 16

General

Test voltage relay winding/relay contact 4 kVrms (50 Hz, 1 min.)
Operating mode 100% operating factor
Degree of protection IP20 (Relay base)
RT III (Relay)
Mechanical service life approx. 2x 107 cycles
Service life, electrical see diagram
Mounting position any
Assembly instructions In rows with zero spacing
Net weight (SAP) 24.2 g

Standards and Regulations

Standards/regulations DIN EN 50178
Rated insulation voltage 250 V AC
250 V AC
Rated surge voltage 6 kV
Insulation safe isolation
Degree of pollution 2
Overvoltage category III
Flammability rating according to UL 94 V2
