PID Series BIAB Single Vessel Control Panel, 4 element

Price
$ 2,100
Taxes and shipping calculated at checkout

Frequently Bought Together

Made to order

Free Shipping

Free Ground to USA residents in the contiguous 48

Email and Phone Support

Contact us via contactus@ebrewsupply.com anytime with your questions or for support.

Proudly made in the USA

All our control panels are designed and assembled in Chassell, Michigan. We strive to use as much USA made product in our panels as we can.

Specifications

Control your one vessel, with one PID and heat it with 4 elements up to 6000w/240v or 5500w/208v.

This NOT UL/cUL listed

Recommended for BIAB, Single Vessel and distillation applications.

Featuring Laser engraved stainless steel 20x20x8 Enclosure from Rittal

Dial in your temps with the EBSP200 PID controller, or control the power on a 0-100% manual scale.

Includes 1 M12 Series Temperature probe for secure, reliable connectivity.


5-30 gallons    30-90 gallons   120v/220v US Ver



Panel Specifications
PID Controllers EBSP200 Temperature Controllers
Full load amperage:

96 amps @ 240v
Max Output:

(4) 5500w Elements and (2) Brewery pumps @ 1-2 amps each
Power outlet:

Double Batch: (2) 14-50 Range style, requiring Neutral and Ground
Power cord:

(2) 6 foot molded cord with CS6364C connector
Power in: CS6375 Flanged inlet(s) 240v with ground and neutral.

Panel uses and provides 120v for control and for pumps
Panel outputs:

(4) L6-30 flanged outlets for elements

(2) L5-15 flanged outlet for pumps
Panel inputs:

(1) XLR inputs with QC variant cables for NPT and TC probes
Enclosure:

Stainless Steel Nema 4x Enclosure

20 in (W) x 22 in (H) x 8.5 in (D)

500mm x 550mm x 225mm
Included in the box:

(1) Control Panel

(1) Power cord for panel

(1) Temp probe cables

(X) Temp probes dependent on selection
Certifications: Controller is not certified UL
Point of origin:

Terminal blocks, relays and power from Germany

Enclosure, Connector and inlet made in the USA

PID Controllers, outlets, contactors, breakers and SSRs from China
Warranty: 1 year parts, 90 days labor

All panels are assembled by Electric Brewing Supply, in Chassell, Michigan from globally sourced parts.

    Downloads

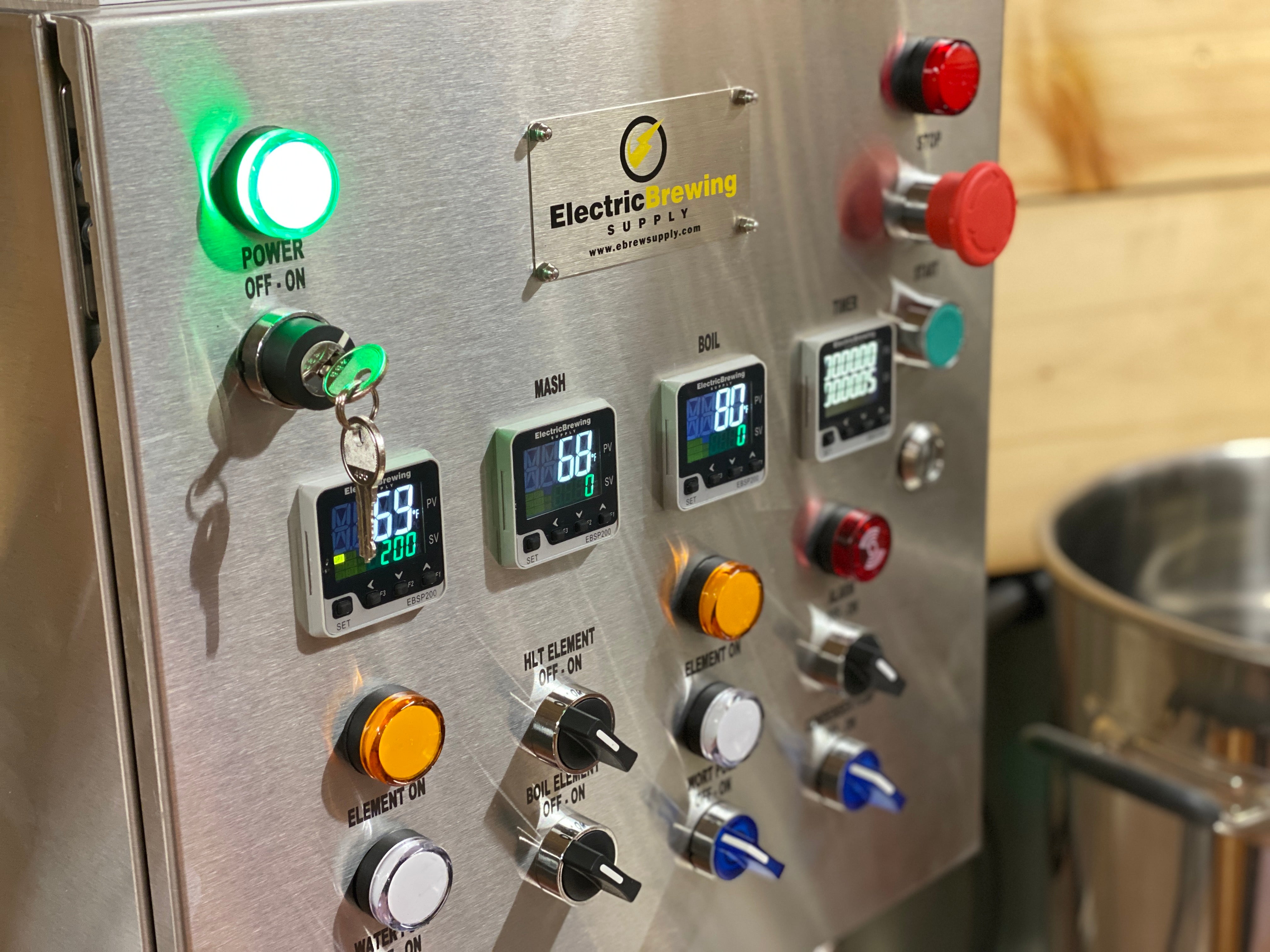

    LCD PID temp readings

    Clear and easy to read

    Easily see your temperatures and set them with our EBSP200 PIDs. Solid, stable, reliable, and easy to use. No convoluted menus to navigate.

    POWER RATING

    Standard or Double Batch

    Brew with 1 vessel at a time or 2. With double batch power, heat your HLT and Boil kettles at the same time; speeding up your day. Prepare the second batch of strike water or clean up more quickly.

    See the specifications for power draw for each power rating.

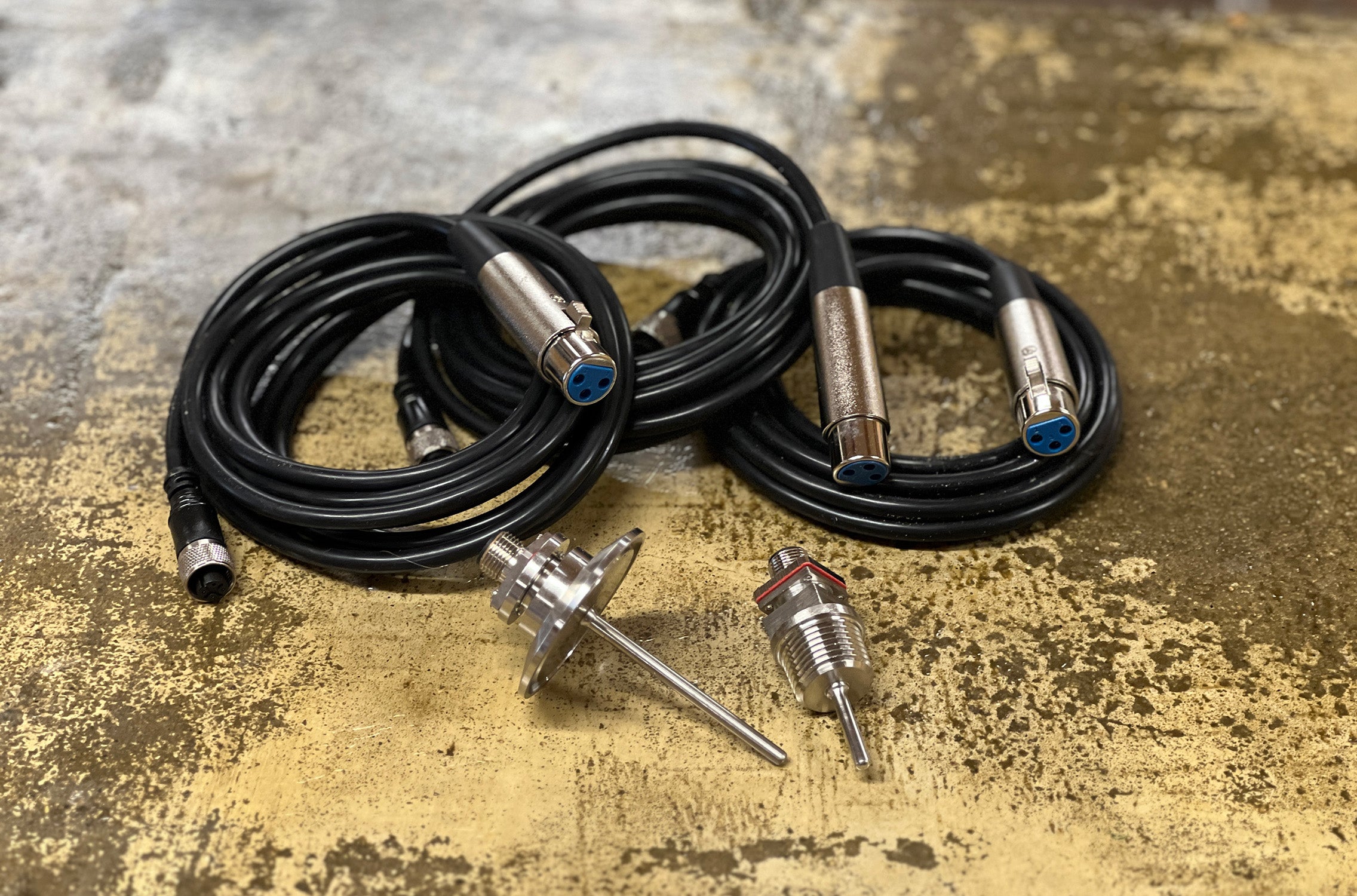

    INCLUDED

    Probes included

    Included in the price is our high quality RTD/PT100 probes. Select between 1/2 NPT threaded probes or 1.5" Tri-Clamp probes.

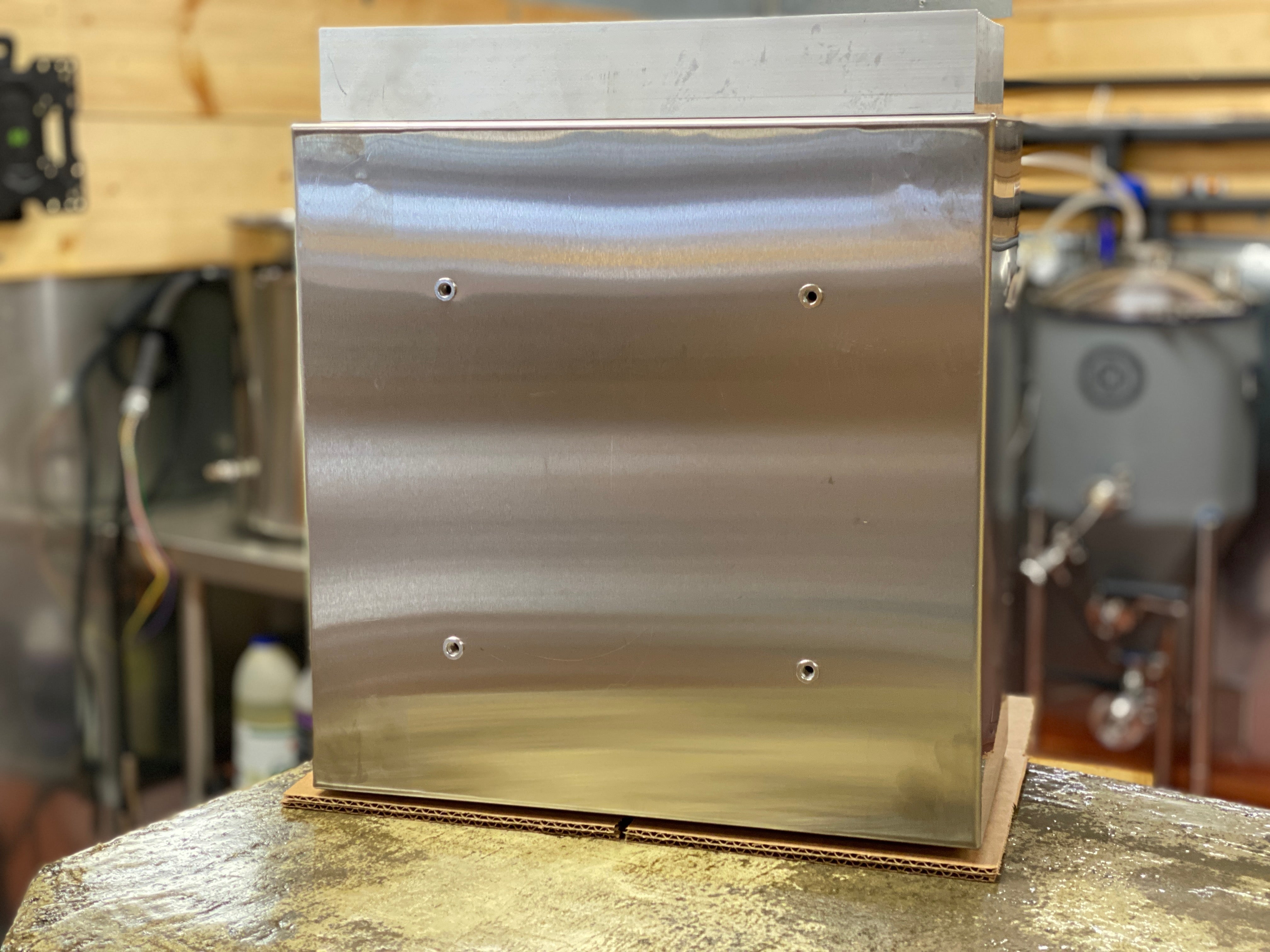

    Easily mounted

    Mount your panel quickly using an industry standard 200x200 VESA TV wall mount. No more guess work involved, find your stud, mount the wall bracket and then, your panel.

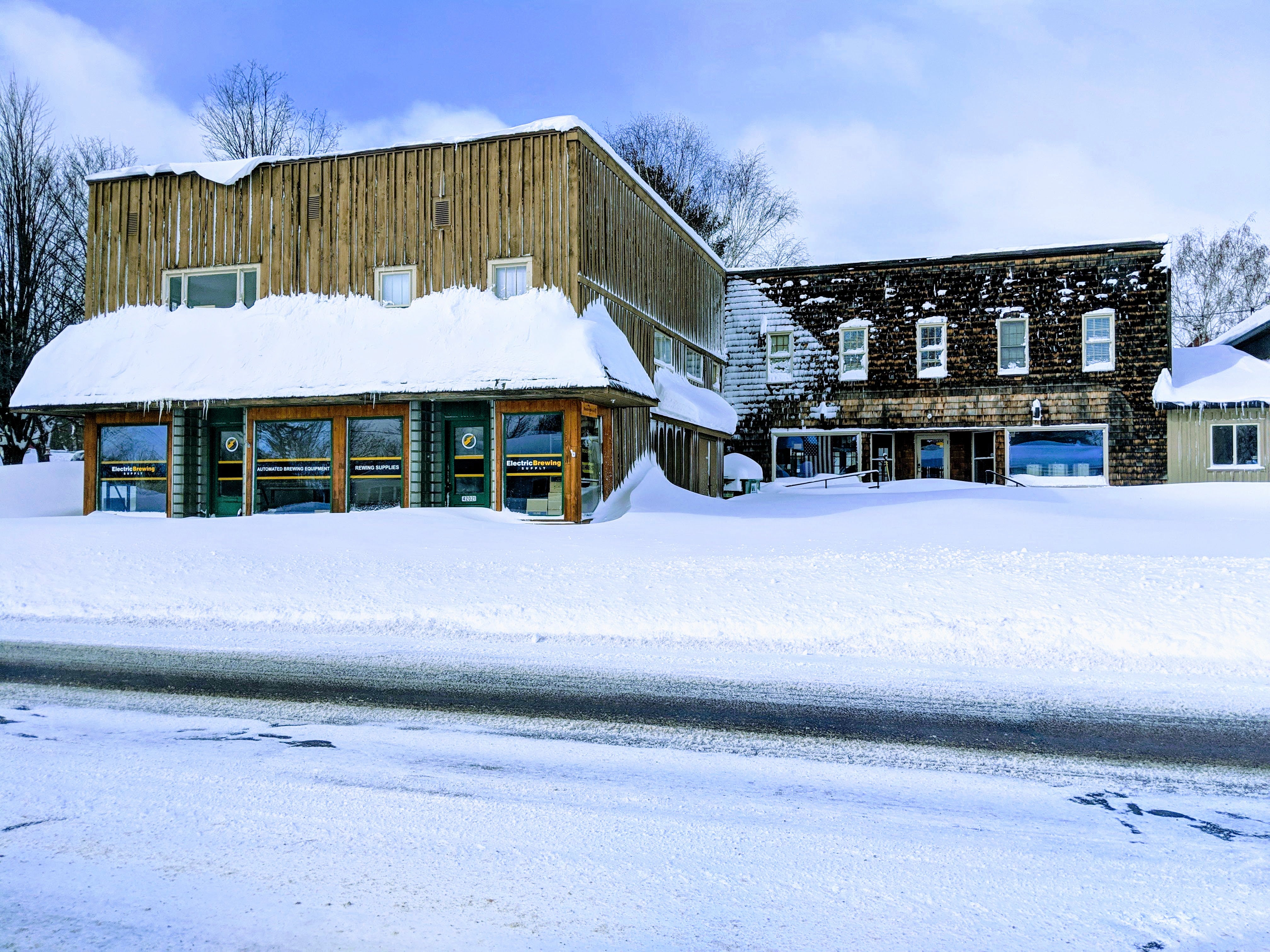

    Proudly made in the USA

    All of our control panels are made right here in the USA. With support and technical help provided by the same folks who designed and built the panel for you.
